| Model No. | SPA31 |
| RF Low Noise Amplifier | N/A |
| RF BIAS-T | N/A |
| Power Divider | N/A |

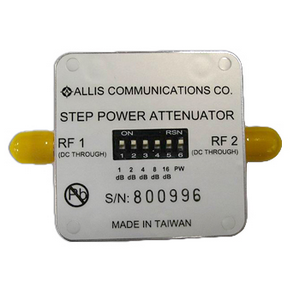

| RF Step Power Attenuator | |
| Frequency | 0.8-2.5GHz |
| Impedance | 50Ω |
| Gain | N/A |
| Noise Figure | N/A |
| DC Voltage | 5V to 12V |
| DC Current | 9.5mA Max.(Vdc=5V) |
| Out P1dB compression | Min. 18dBm Typ. 27dBm |
| Input Power | +34dBm |
| Power Consumption | N/A |
| Fuse | N/A |
| Max. load | N/A |
| ESD DC Spark-Over voltage | N/A |
| Isolation | N/A |
| Insertion Loss | N/A |
| Phase Unbalance | N/A |
| Attenuation | 1dB/2dB/4dB/8dB/16dB/31dB |
| Weight | 35grams Max. |
| Dimension | 41.6X41.3X10.1mm |
| Connector type | SMA Jack |
| Housing material | Aluminum |
| Working Temperature | -40℃ to +85℃ |
| Storage Temperature | -65℃ to +125℃ |
