GNSS Antenna |  |  |  |

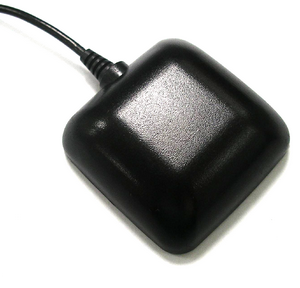

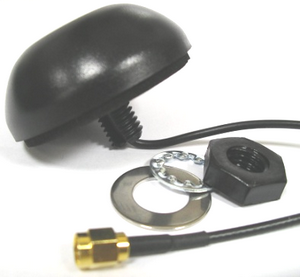

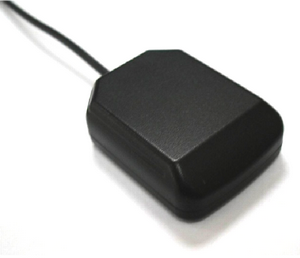

| Model No. | A828G | L827G | U828G |
| GPS L1 (1575.42 MHz) | | | |
| GPS L2 (1227.6 MHz) | N/A | N/A | N/A |
| GPS L5 (1176.45 MHz) | N/A | N/A | N/A |
| GLONASS G1 (1602 MHz) | | | |
| GLONASS G2 (1246 MHz) | N/A | N/A | N/A |
| GLONASS G3 (1204.704 MHz) | N/A | N/A | N/A |
| BDS B1 Lower (1561.098 MHz) | N/A | N/A | N/A |
| BDS B1 Upper (1589.724 MHz) | N/A | N/A | N/A |
| BDS B2 (1207.14 MHz) | N/A | N/A | N/A |
| BDS B3/B6 (1268.52 MHz) | N/A | N/A | N/A |
| Galileo E1 (1575.42 MHz) | | | |
| Galileo E5a (1176.45 MHz) | N/A | N/A | N/A |
| Galileo E5b (1207.14 MHz) | N/A | N/A | N/A |
| Galileo E6 (1278.75 MHz) | N/A | N/A | N/A |
| Amplifier Gain without cable | 29dB Typ. | 29dB Typ. | 29dB Typ. |
| DC Voltage | 2.7~5.5V | 2.7~5.5V | 2.7~5.5V |
| DC Current | 6~11mA | 6 ~ 11mA | 6 ~ 11mA |
| Housing Material | PC | PC | ASA |
| Weight(without Cable) | 65 grams max. | 46 grams max. | 42 grams max. |
| Connector | Custom | Custom | Custom |
| Cable Length | Custom | Custom | Custom |
| RF Cable | Custom | Custom | Custom |
| Dimension | 60mm Dia. x 40 mm | 49.3 x 49.3 x 17.3 mm | 49 x 36.6 x 15.8 mm |
| Housing Color | Black | Black | Black |
| Mounting | Screw Mount | Magnetic Mount | Magnetic Mount |
| Waterproof | IP56 | IP56 | IP67 |
