GNSS Antenna |  |  |

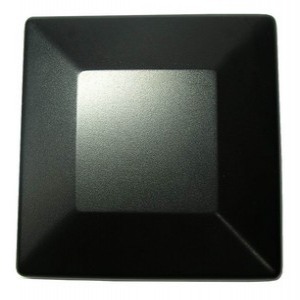

| Model No. | PAGGR | A812J |
| GPS L1 (1575.42 MHz) | | |
| GPS L2 (1227.6 MHz) | N/A | N/A |
| GPS L5 (1176.45 MHz) | N/A | N/A |
| GLONASS G1 (1602 MHz) | | |
| GLONASS G2 (1246 MHz) | N/A | N/A |
| GLONASS G3 (1204.704 MHz) | N/A | N/A |
| BDS B1 Lower (1561.098 MHz) | | |
| BDS B1 Upper (1589.724 MHz) | | |
| BDS B2 (1207.14 MHz) | N/A | N/A |
| BDS B3/B6 (1268.52 MHz) | N/A | N/A |
| Galileo E1 (1575.42 MHz) | | |
| Galileo E5a (1176.45 MHz) | N/A | N/A |
| Galileo E5b (1207.14 MHz) | N/A | N/A |
| Galileo E6 (1278.75 MHz) | N/A | N/A |
| Amplifier Gain without cable | N/A (Passive antenna) | 14dB typ. |
| DC Voltage | N/A | 2.7~ 5.5V |
| DC Current | N/A | 3~ 6mA |
| Housing Material | ABS | PC |
| Weight(without Cable) | 48 grams max. | 65 grams max. |
| Connector | SMA (Female) | Custom |
| Cable Length | N/A | Custom |
| RF Cable | N/A | Custom |
| Dimension | 66X 66 X18 mm | 60mm Dia. x 40 mm |
| Housing Color | Black | Black |
| Mounting | N/A | Screw Mount |
| Waterproof | Indoor applications | IP56 |
