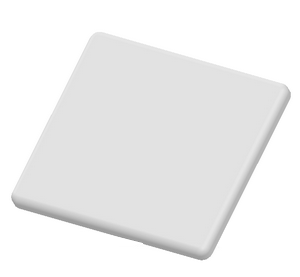

| Model No. | FA512 |
| Frequency | 5~5.9GHz |
| Average Peak Gain(Port1) | 12.2dBi |
| Average Peak Gain(Port2) | 12.8dBi |
| Average Efficiency(Port1) | 87.9% |
| Average Efficiency(Port2) | 85.3% |
| 3dB Beam Width(Port1) | XZ: 35°/ YZ: 35° |
| 3dB Beam Width(Port2) | XZ:35° / YZ:35° |
| VSWR Max. | 2.0:1 |
| ECC | < 0.1 |
| Isolation | 14dB |
| Impedance | 50Ω |
| Pattern Type/ Polarization | Directional / Linear |
| Housing Material | Top: ASA / Bottom: AL 5052 |
| Size | 157 *140 *10 mm |
| Connector | SMA Jack (Female) |
| Mounting | Permanent mount |
| Housing Color | White |
| Waterproof | IP67 |
